RANGE
RENTAL
EY-R10.5LWS
10.5 kVA, 8.4 kW
Kohler, Stage V

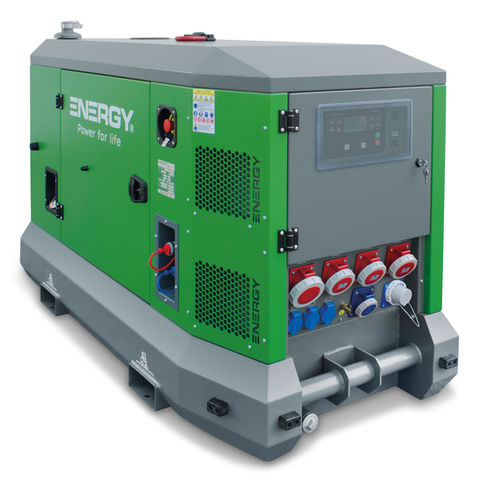

The EY-R10.5LWS STAGE V diesel generator from the RENTAL range is designed to provide stable and reliable power in construction sites and temporary applications. Designed for rental, it combines rugged construction and maneuverability with a compact and durable design. Compliant with STAGE V emission standards, EY-R10.5LWS reduces environmental impact. With an efficient cooling system and built-in protections, it ensures high performance even in harsh environments. Perfect for those who need power and versatility, it provides steady and safe support, meeting the needs of the most demanding construction sites.
KEY DATA
Voltage 400V + N - Three-phase
1500 rpm
Kohler KDW1404 engine
Electric starter
EU emissions STAGE V
TECHNICAL DATA
DIMENSIONS
LENGTH
1875 mm
WIDTH
880 mm
HEIGHT
1170 mm
WEIGHT
N.A.

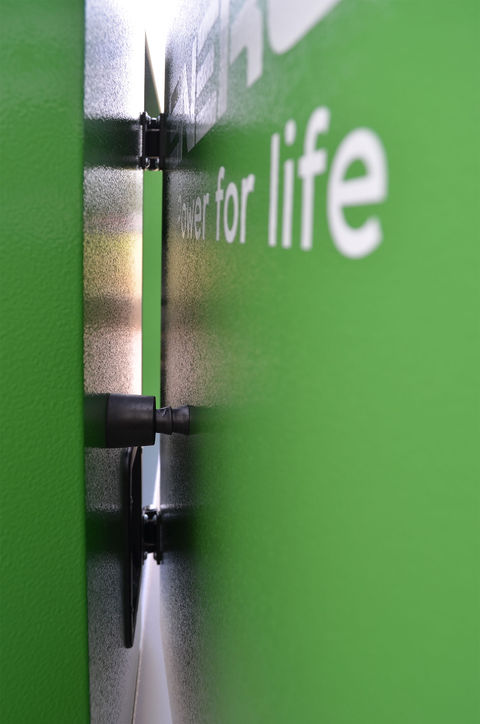

Outdoor silenced cabin made of steel and painted with epoxy powder to ensure optimal corrosion resistance. The cabin is RAL6017 green, while the roof, base and front panel are RAL7012 gray. It is equipped with sound-absorbing material with high acoustic insulation power. Accessibility for routine and extraordinary maintenance is facilitated by sturdy lockable doors. Inside the hood is a residential muffler with noise reduction of 35dB(A). The central lifting hook is certified. Fresh air intake and hot air exhaust occur vertically through special soundproofing pockets.
PRODUCT SPECIFICATIONS
SWITCHBOARD
AUTOMATIC
The EY-R10.5LWS model's control panel ensures advanced and safe control. At the center of the system is the Comap AMF25 control box with ON/OFF switch, protected by a porthole door that allows immediate visibility. Features include an integrated battery charger, a periodic test function to monitor system status, and references for network connection.
Enclosed in a rugged IP44 enclosure, the panel resists external agents. It is configured with a kit of eight customizable outlets: four 400V 5-pin outlets, one 230V 16A 3-pin outlet and three 230V schuko outlets, each protected by circuit breakers and a general differential.
Additional features include a USB port and a 230V 16A CEE input plug to power battery and heater. Thermomagnetic circuit breakers protect auxiliary lines, while an emergency stop button and grounding connection provide maximum safety.
An electronic float switch monitors the diesel level, and an alarm system signals voltage and frequency variations, low oil pressure, high water temperature, alternator failure, and low fuel level. Finally, there are digital instruments for oil pressure and engine temperature.
SWITCHBOARD
AUTOMATIC
The EY-R10.5LWS model's control panel ensures advanced and safe control. At the center of the system is the Comap AMF25 control box with ON/OFF switch, protected by a porthole door that allows immediate visibility. Features include an integrated battery charger, a periodic test function to monitor system status, and references for network connection.
Enclosed in a rugged IP44 enclosure, the panel resists external agents. It is configured with a kit of eight customizable outlets: four 400V 5-pin outlets, one 230V 16A 3-pin outlet and three 230V schuko outlets, each protected by circuit breakers and a general differential.
Additional features include a USB port and a 230V 16A CEE input plug to power battery and heater. Thermomagnetic circuit breakers protect auxiliary lines, while an emergency stop button and grounding connection provide maximum safety.
An electronic float switch monitors the diesel level, and an alarm system signals voltage and frequency variations, low oil pressure, high water temperature, alternator failure, and low fuel level. Finally, there are digital instruments for oil pressure and engine temperature.
APPLICABLE OPTIONS
All Energy gensets can be customized to suit your needs and type of use. Discover the optional extras applicable to this model!
STANDARD CONFIGURATION
All Energy gensets come with standard equipment. Check out the accessories included in this model!
APPLICATIONS
CASE HISTORY
Energy recommends
Energy's water-cooled, 1500 rpm gensets offer ideal solutions for construction sites and mobile use.
Energy's RENTAL range, with power ratings from 10 to 330 kVA, offers robust, STAGE V-compliant three-phase diesel generators that are ideal for construction sites and mobile Rental. Designed for continuous use in harsh conditions, they include advanced features for safety and convenience, such as customizable switchboards and anti-tip systems.
